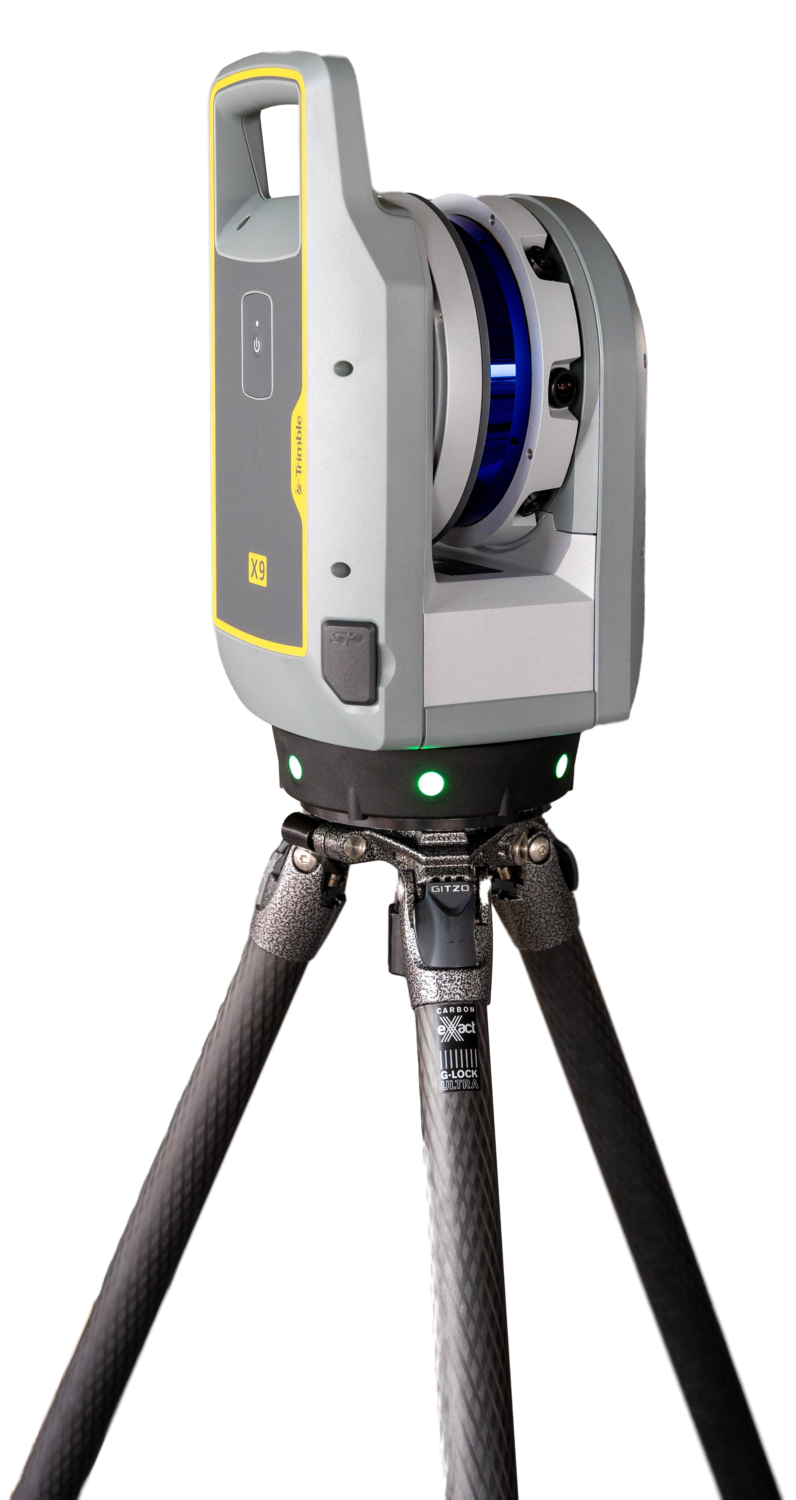

TRIMBLE X9

Construction-Ready 3D Laser Scanner

The Trimble X9 3D laser scanning platform leverages proven Trimble technology to deliver the range, accuracy, speed and sensitivity you need to do more. With flexible licensing plan options, choose the scanning functionality that fits your project needs.

Reach out to our experts

Powerful Performance That is Easy to Use

Watch how the power of Trimble's X9 3D laser scanner makes everyday scanning tasks easier and more efficient.

Speak with an expert

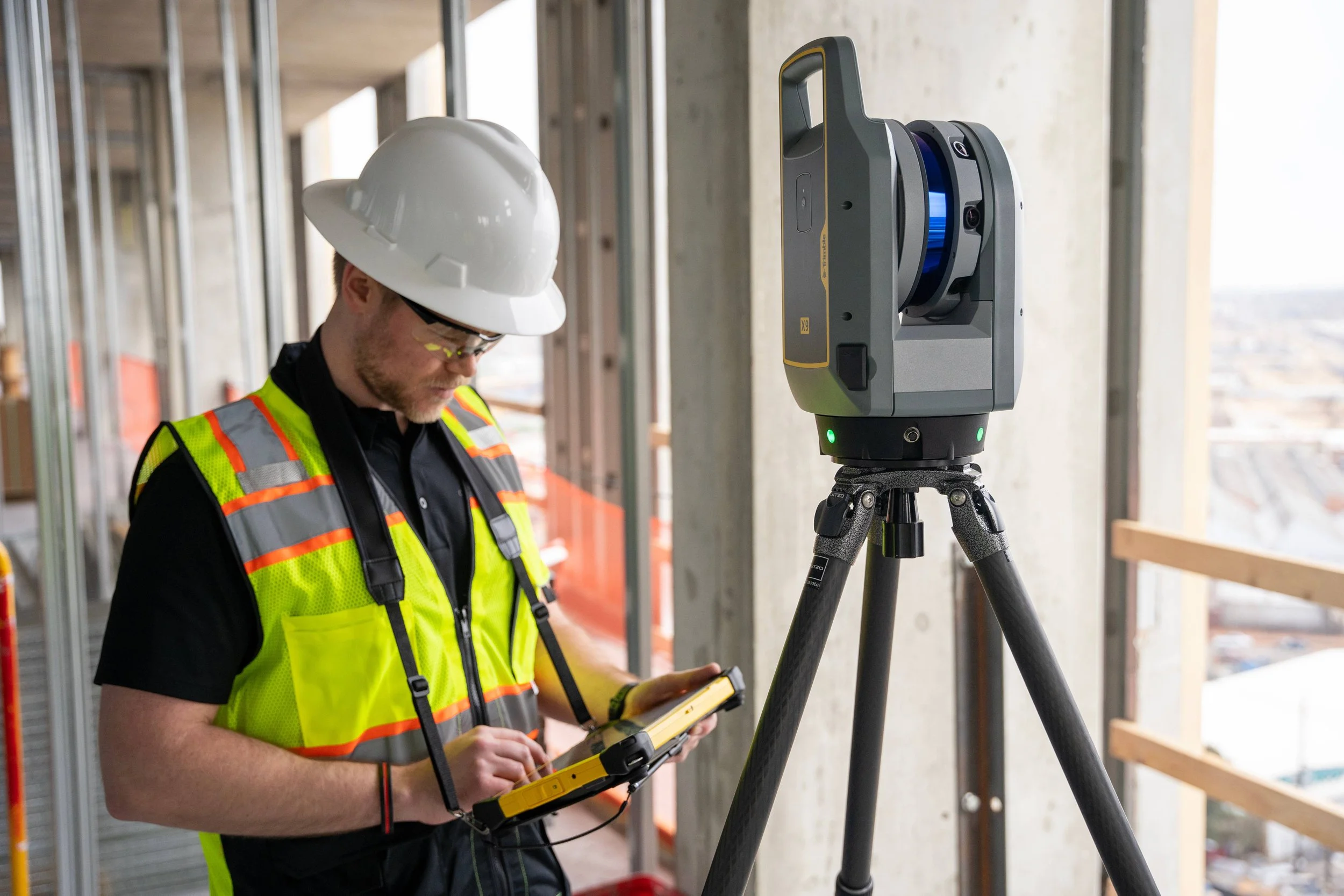

A construction worker wearing a white hard hat and a neon yellow safety vest operating a surveying instrument on a tripod at a building site.

Key specifications

Our most versatile laser scanner, offering intermediate range, high accuracy and short scan times with higher sensitivity for peak performance.

Scan speed: Up to 1000 kHz

Scan range: 0.6 m–150 m

Scan time: <1 min - 6 min

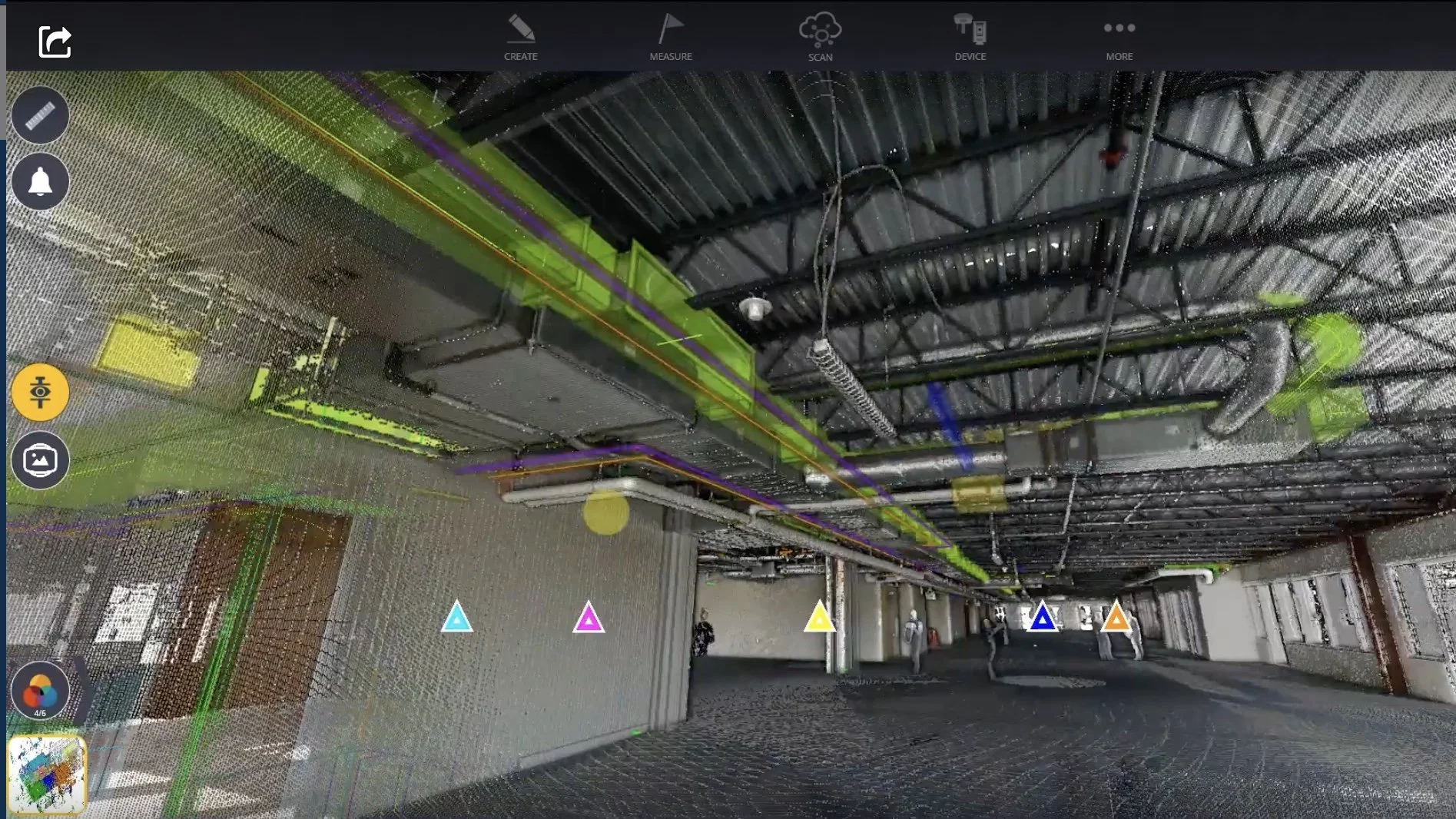

Digital representation of a building's interior with exposed ductwork and pipes on the ceiling, viewed in a modeling or augmented reality program. Various colored lines and markers indicate different elements, with two people visible in the distance.

Collect More Detailed Data

With improved angular accuracy of 16", the X9 can capture dense point clouds which provides high-fidelity capture of the scene. This makes it ideal for for: renovations, laser layout, as-built verification, prefab, QA/QC, and more.

Construction worker in safety gear using a tablet next to a 3D laser scanner on a building site.

In-Field Registration

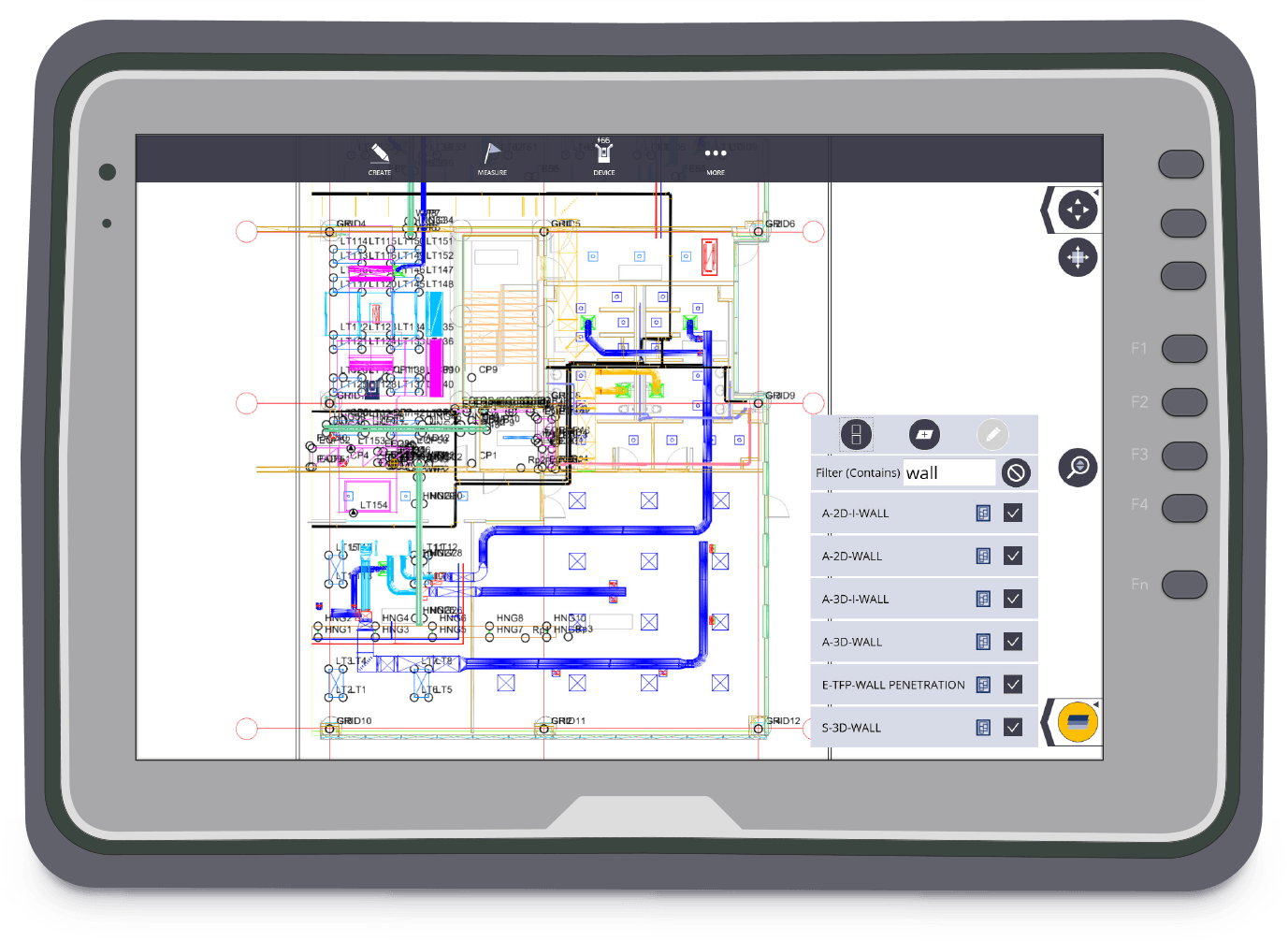

Increase your productivity while in the field by utilizing automatic in-field registration utilizing inside of Trimble FieldLink building construction software.

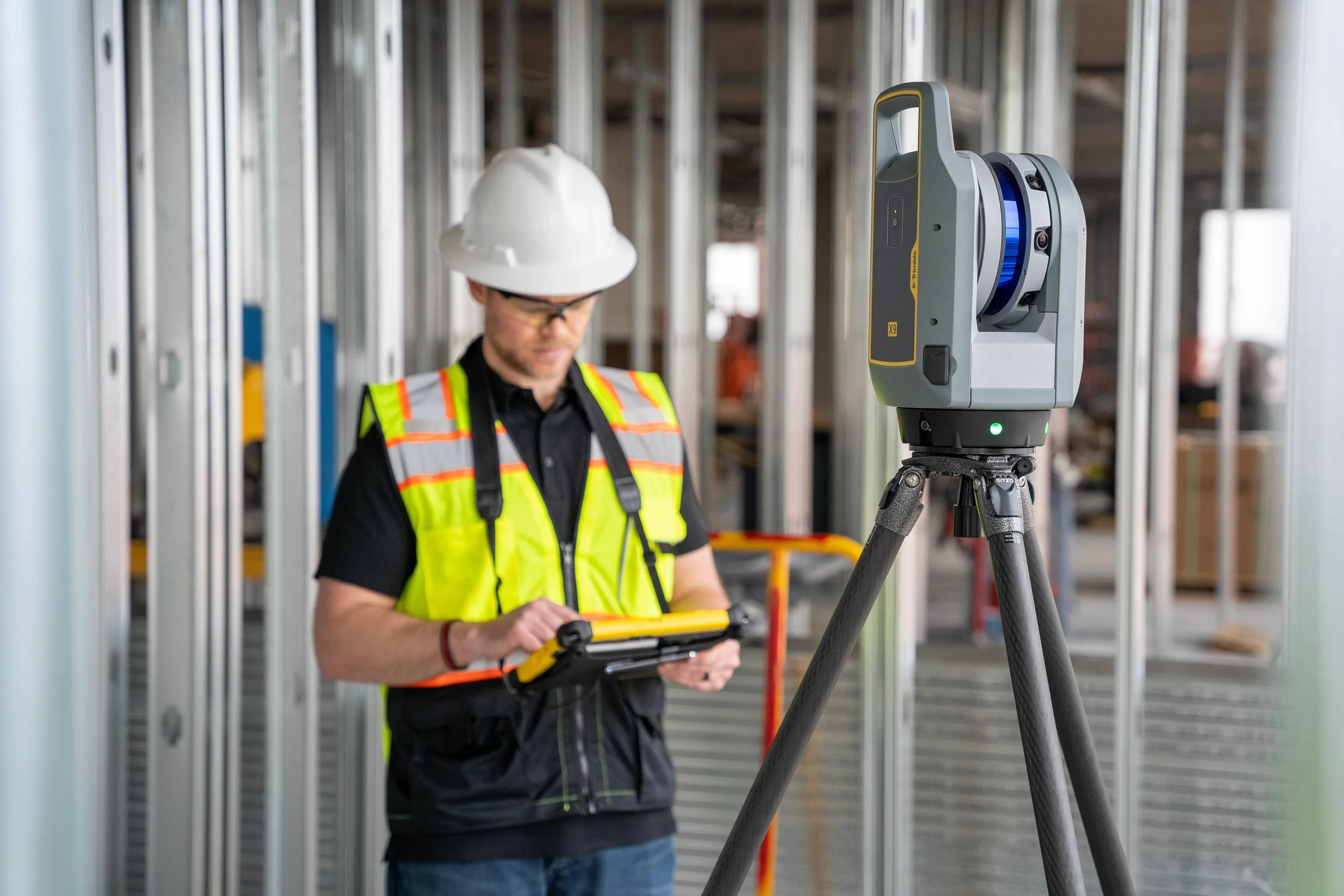

Construction worker using a digital device next to a 3D laser scanner on a tripod at a building site.

Increased Capture Range

With a longer range laser (up to 150m), the X9 can capture data from greater distances, allowing you to scan larger areas and cover more ground in less time.v

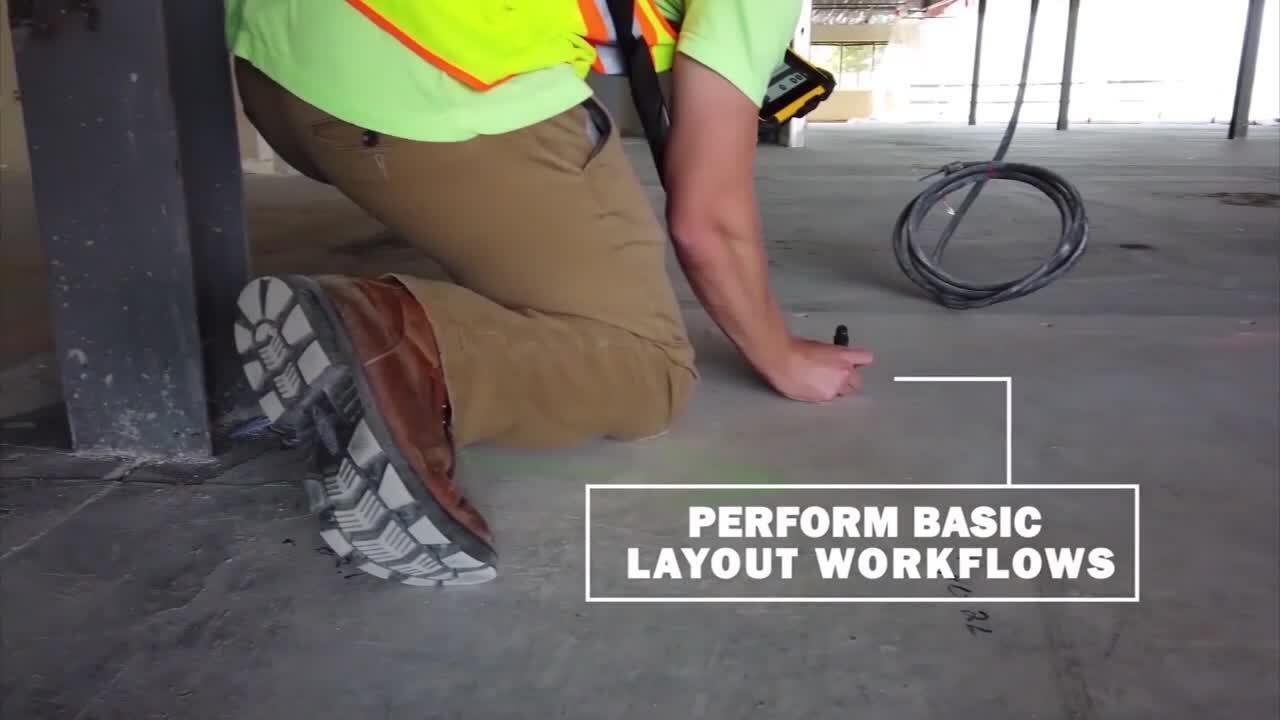

Construction worker using a marker on a concrete floor, wearing a safety vest, with the text 'Perform Basic Layout Workflows' overlayed.

Integrated Laser Pointer

By utilizing the integrated laser pointer on the X9, users can georeference their scans to the project coordinate system. Additionally, the laser can be used to perform all your basic field layout tasks.

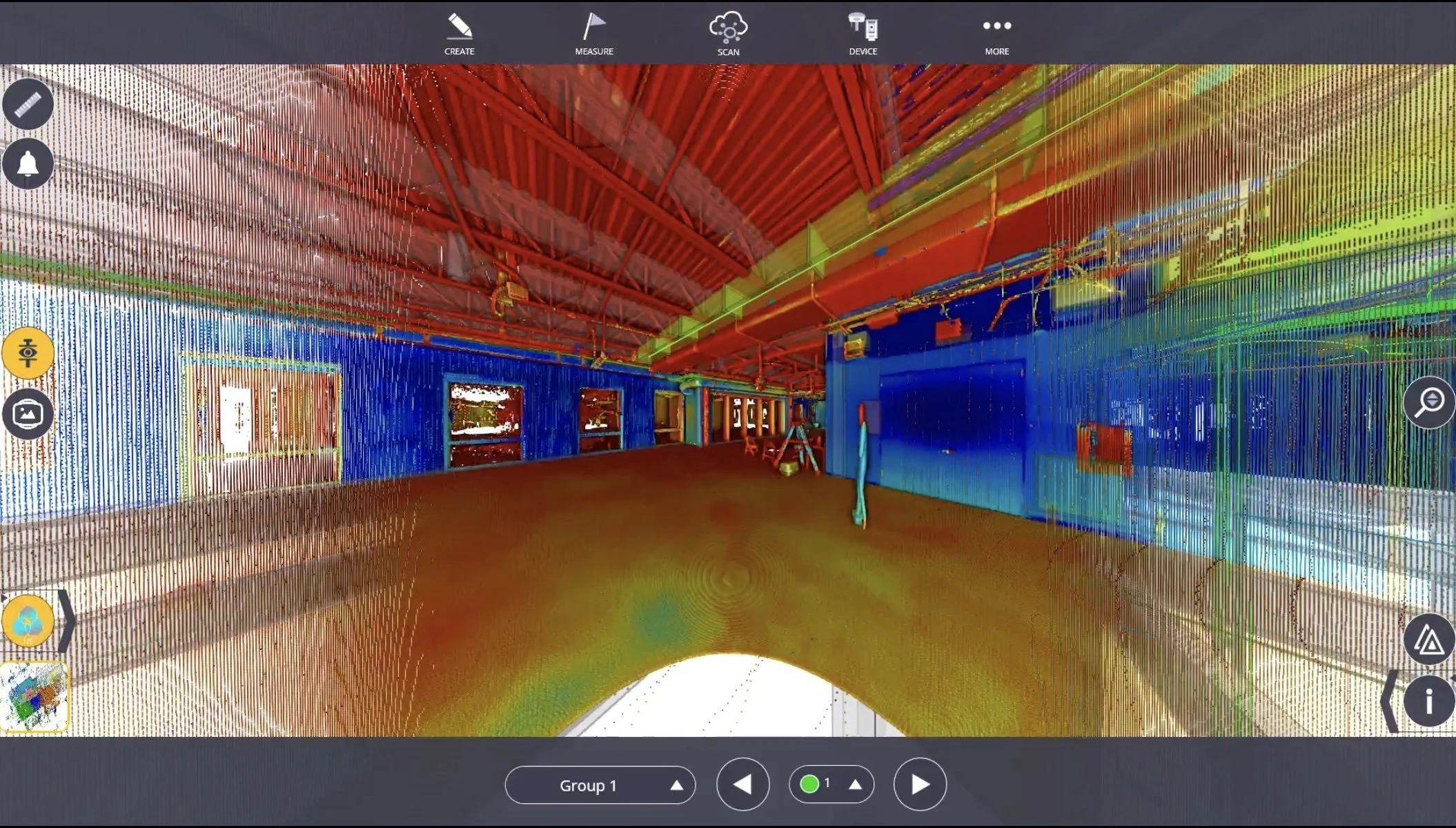

3D laser scan visualization of an indoor space with color-coded surfaces and structural details visible.

Fast Data Capture

With a fast capture speed (up to 1M pps) and high sensitivity laser, you can gather more usable data from complex surfaces (detailed, dark, mirrored, rounded) to ensure you get the data you need the first time.

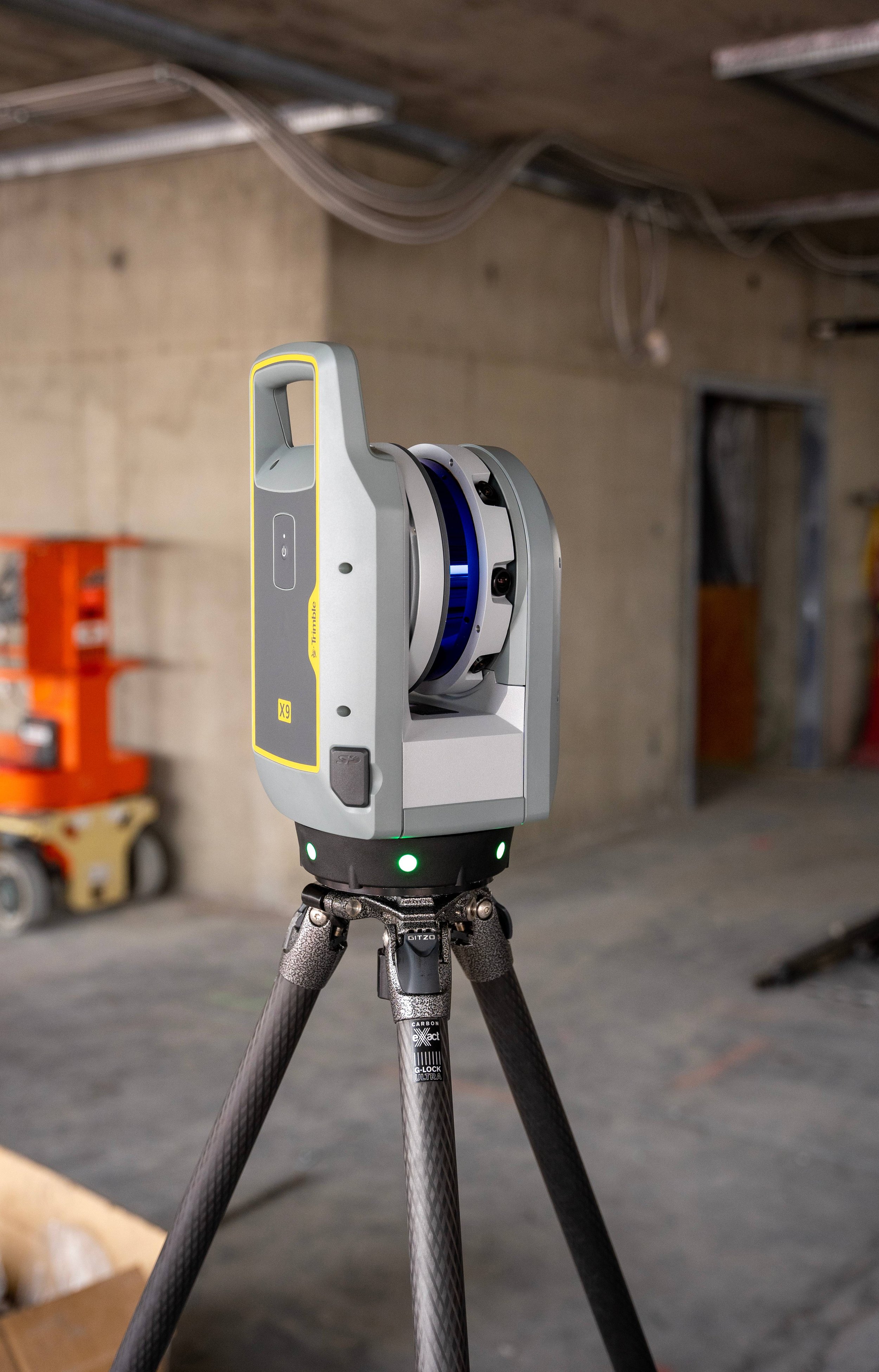

3D laser scanner on a tripod at a construction site

Self-Calibration and Self-Leveling

Eliminate the need for annual calibrations and for leveling the instrument during set up, which reducing maintenance costs and downtime.

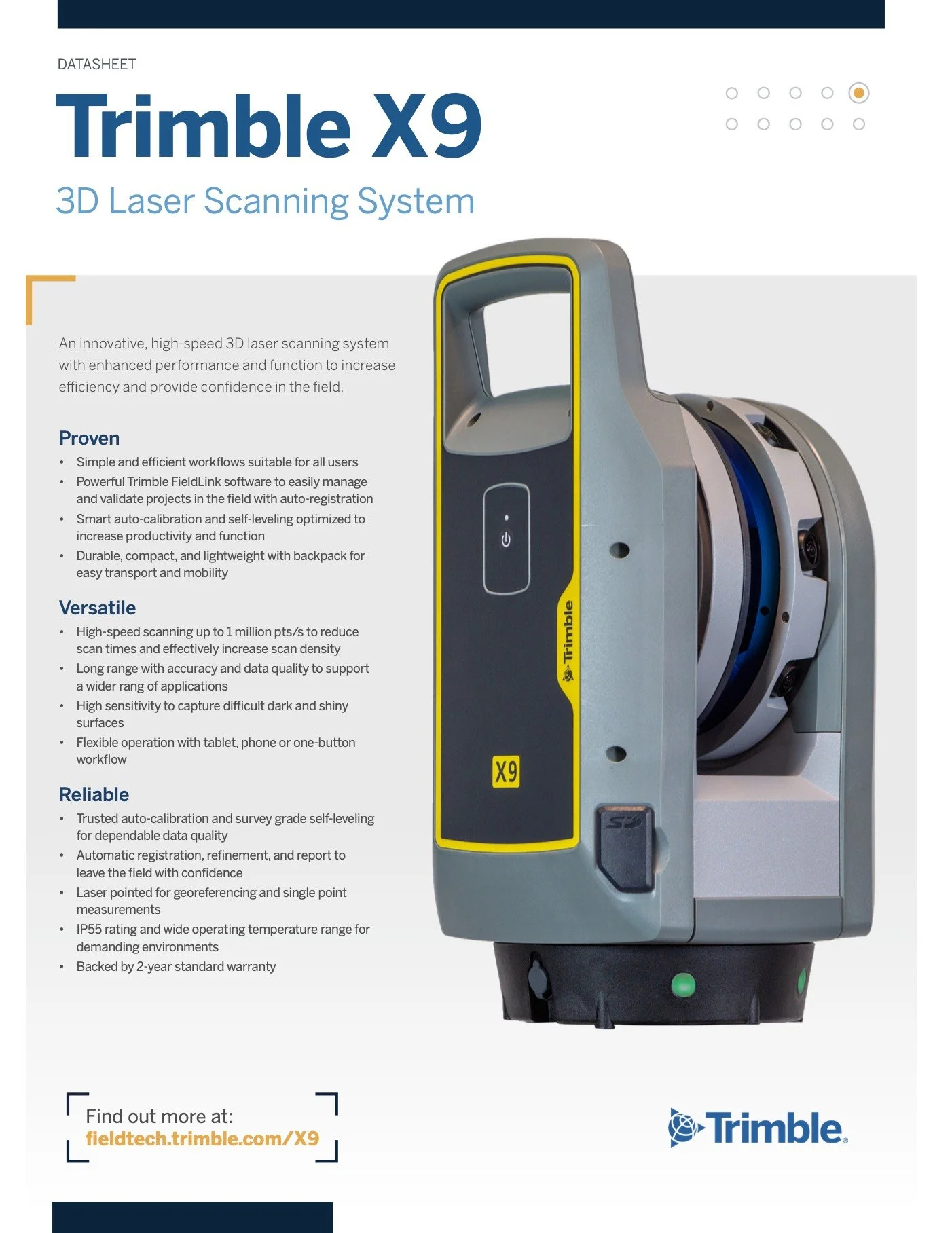

Trimble X9 3D laser scanning system datasheet with product image and features.

Download the X9 Datasheet

3D model of a steel building structure in Trimble RealWorks software interface, displaying beams and columns.

How can scanning help steel fabricators?

Many are now looking into scanning and want to find efficient ways to consider the real world and the BIM model together for quality assurance and project planning and other benefits. In this article we will look into some use cases for scanning focused on the steel fabricator segment.
